High Torque 42mm carbon brush automobile dc motor with ball bearing
Model: RS-550SA/RS-550SH
Tytical Application:
Power Tool
Shredder
Vacuum cleaner
Automobile
Smart Robot
Household Appliances
Features:
| Carbon brush |
| Oil-impregnated bearing or ball bearing, double ball bearing available |
| 12v 24v voltage |
| 1kg.cm rated load |
| 5mm shaft diameter |
| Knurled shaft available |
| Varistor inside |
| Flux ring available |
| 3 or 5 slot rotor |
| Class F Magnet Wire |
| Metal end cap |
| Encoder available |
| 0.05-0.5mm end play |
| 42mm diameter |
| 60mm housing length |

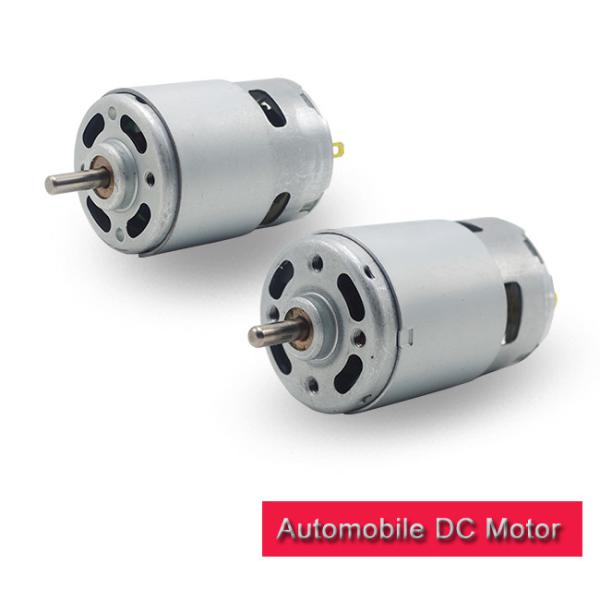

Product Showcase:
Outline Drawing:
Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-750PH-4568R | 5.0~13.0 | 12.0 | 7500 | 0.35 | 6683 | 2.80 | 349 | 34.25 | 23.92 | 3150 | 309.13 | 22.50 |
| RS-755PH-2987R | 5.0~25.0 | 24.0 | 5200 | 0.25 | 4393 | 1.36 | 473 | 46.42 | 21.31 | 3050 | 299.31 | 7.40 |
| RS-755PH-5535R | 5.0~19.0 | 18.0 | 11200 | 1.3 | 9496 | 7.30 | 910 | 89.30 | 88.63 | 5990 | 587.83 | 40.50 |
| RS-755PH-7019R | 5.0~24.0 | 24.0 | 25000 | 1.42 | 21600 | 9.70 | 738 | 72.42 | 163.50 | 5769 | 566.14 | 65.85 |
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-775PH-7417 | 5.0~13.0 | 12.0 | 12000 | 1.55 | 10490 | 10.90 | 856 | 84.00 | 92.10 | 6835 | 670.76 | 75.60 |
| RS-775PH-4538R | 5.0~13.0 | 12.0 | 5100 | 0.55 | 4338 | 3.13 | 576 | 56.53 | 25.63 | 3852 | 378.02 | 17.80 |
| RS-775PH-4543R | 5.0~25.0 | 24.0 | 8800 | 0.71 | 7680 | 4.88 | 1080 | 105.99 | 85.07 | 8520 | 836.11 | 33.50 |
| RS-775PH-8510FR | 5.0~12.0 | 10.8 | 17000 | 2.3 | 14750 | 15.20 | 815 | 79.98 | 123.29 | 6180 | 606.48 | 99.60 |
The Shaft and the motor performance such as voltage and speed can be custom made.
PLS download PDF spec for referrence.
RS-750PH.pdf
RS-775PH.pdf
FAQ
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
Q: What is your MOQ?
A: Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q: Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
A: T/T, Western Union, Paypal, etc, easy for your business.
